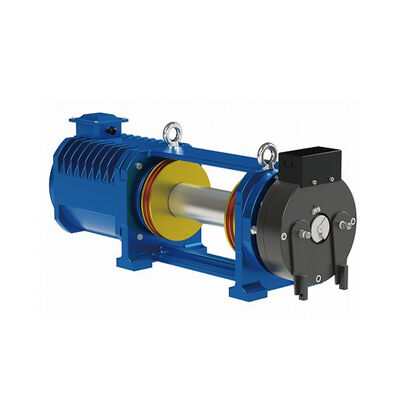

220/380V Elevator Gearless Traction Machine 320~450KG for villa passenger elevator
Product Introduction – MONA180B Permanent Magnet Synchronous Gearless Traction Machine
The MONA180B is a high-performance permanent magnet synchronous gearless traction machine, specifically engineered for modern elevator systems. Operating on a dual-voltage power supply (220V/380V), it delivers exceptional energy efficiency and reliable performance across a wide range of residential and light commercial applications.
With a rated load capacity of 320 to 450 kg and elevator speeds ranging from 0.4 to 1.0 m/s, the MONA180B offers flexible configuration options to suit various building requirements. The 2:1 roping ratio, combined with a choice of Φ160mm or Φ180mm sheave diameters, ensures smooth and precise operation while minimizing mechanical wear.
Designed for durability, the machine features an IP41 protection rating and Class F insulation, guaranteeing safe operation in demanding environments. The maximum axle load reaches 2500 kg, and the unit operates under S5-40% duty cycle, making it ideal for intermittent use. Weighing only 130 kg, the MONA180B is compact yet robust, significantly reducing installation and maintenance efforts. Equipped with the EMM600 brake model (DC110V/2.4A), it ensures enhanced safety and reliable stopping performance. This traction machine represents the perfect balance of innovation, efficiency, and reliability for vertical transportation solutions.
Parameter Table
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
