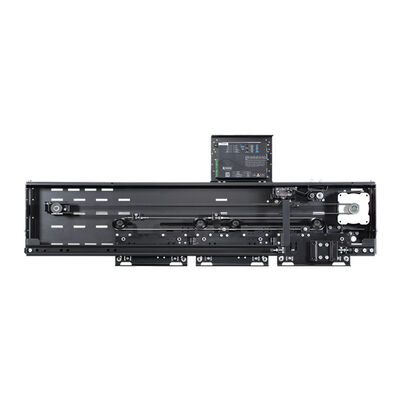

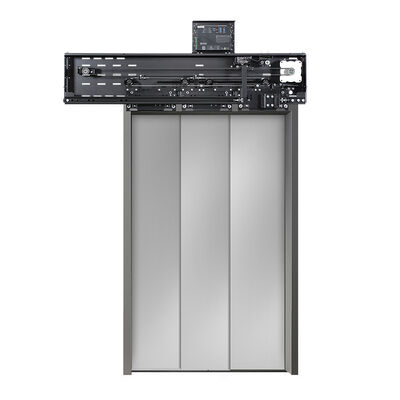

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Ampliación de imagen :  Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: SUNNY
Certificación: CE,ISO9001
Número de modelo: Sistema SN-OMJ-602
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Precio: $500~1200
Detalles de empaquetado: recipiente
Tiempo de entrega: 7~15 días
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 5000PCS/mes

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

descripción
Nombre: Operador de la puerta Nombre del producto: Operador de la puerta
JJ: 900~2000m m Usado: Piezas de ascensor
Motor: Motor sincrónico con imán permanente Instalar: Instalación superior del automóvil/Instalación de viga recta
Transporte: Entrega de mar Aplicable: Equipo de ascensor
Modelo: Operador de la puerta Tipo: Operador de la puerta
Resaltar:

3-leafs elevator door operator

,

side opening elevator door parts

,

permanent magnet synchronous door operator

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Features:
  • Using permanent magnet synchronous motor, featured by high efficient driving, wide torque range and low running noise
  • Full-closed-loop control technology. High control precision. Automatic generation of door opening and closing curves. One-key debugging
  • Equipped with car door lock, the car door can not be opened in non-level zone. The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/T7588.1/2 standard requirement
  • Driven weight of landing door and car door ≤ 300kg. Meet requirements of various types of door panel weight
  • Standard I/O port. Reserving CAN communication port. Equipped with data communication function of master control system
  • High utilization rate of shaft: Door operator structure is compact, lowering requirements to shaft space, adapting to small shaft and wide opening door
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 0
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 1
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 2
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 3
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 4Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 5
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 6
FAQ
  • 1. Are the elevator wire ropes durable?
    The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
  • 2. Is it dangerous for power failure suddenly during the elevator running?
    If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
  • 3. Will us be hurt when it closed suddenly?
    In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
  • 4. How the elevator running?
    Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
  • 5. Is the escalator installation complicated?
    We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
  • 6. Do you have any cerifications?
    Yes, we do with ISO9001 / CCC / CE Certificates for u.
